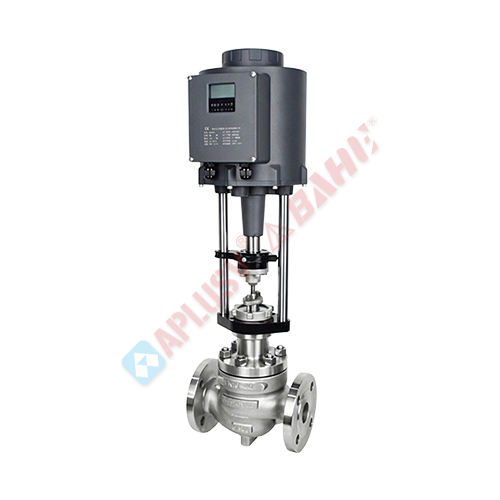

A high-reliability, precise and intelligent top-guided single-seat regulating valve adopts a top-guided unbalanced structure. It features high stiffness, heavy load capacity, S-shaped flow channel, low pressure drop loss, large flow coefficient, wide adjustable range and high flow characteristic accuracy. This regulating valve is suitable for applications with small pressure differences and offers tight closure. It is also suitable for regulating the flow or pressure of the medium.
This valve seat adopts a threaded insertion structure, featuring high reliability and convenient maintenance in the later stage. It overcomes the difficulty of traditional valve seat structure where leakage makes replacement impossible. It extends the service life. With a flow-opening design, the medium flows in the direction of valve opening, and the controllability of small opening degree is good, with small distortion of flow characteristics.
● The design adopts a top-guided type.
● Unbalanced internal valve core structure.
● Valve seat with easy replacement feature.
● Tight closure and reliable sealing.
● The electric/ pneumatic actuators can be configured arbitrarily
● Key operating conditions: noise suppression, cavitation, erosion, low flow rate, corrosive, general operation conditions
● Traffic characteristics: Percentage, Linear characteristics
● Optional materials: WCB, 304, 316, 316L, WC6, WC9
● Valve size: DN15 - 300mm: NPS1/2 - 12"
● Pressure rating: PN1.0 - 6.4 MPa; CL150~300
● Temperature range: -196 to +650℃ (optional for industrial and mining applications)
● Process connection: Flange, welding, thread, optional customization
● Gasket: Enhanced Teflon gasket, metal graphite gasket, high-pressure toothed gasket
● Filler material: Polytetrafluoroethylene, Flexible Graphite
● Actuators: Pneumatic actuators, Electric actuators
● Other configurations: Contact the BAHE business personnel or the technical department to obtain more technical specifications or option information about this product.
