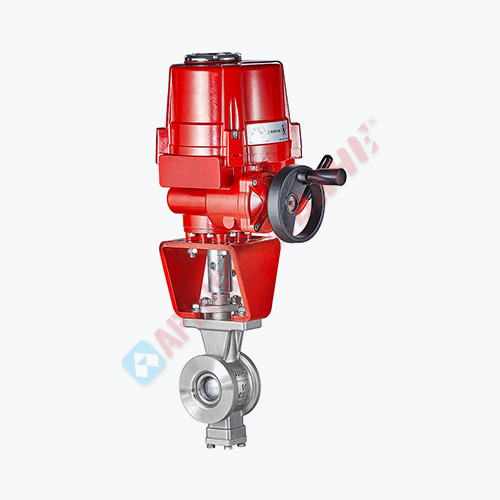

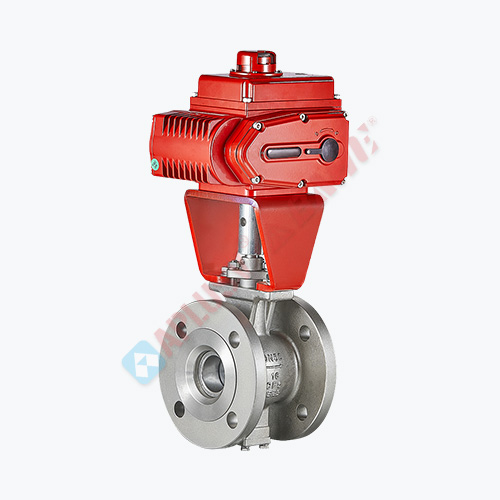

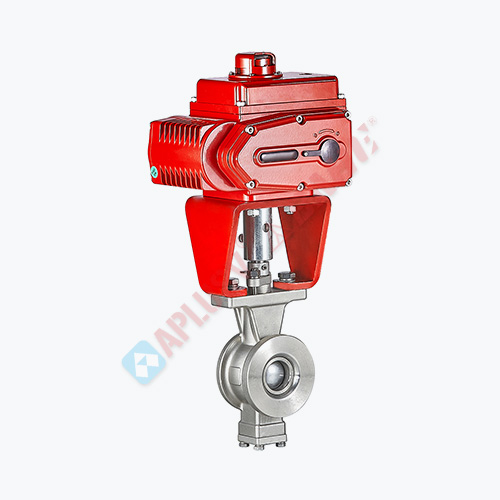

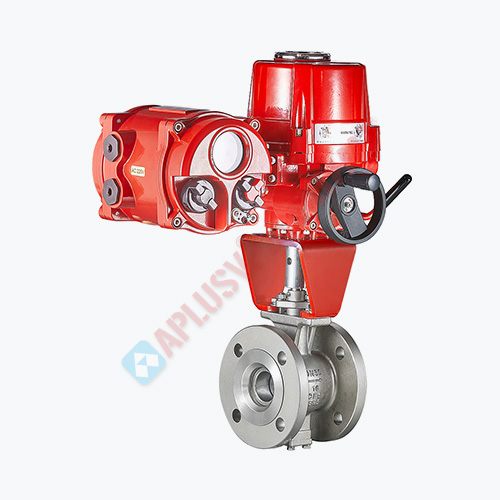

Our anti-wear special V-type ball valve has a V-shaped core, which has a shearing effect on the valve seat. It is widely used in industrial enterprises such as papermaking, chemical industry, and metallurgy for the control of relevant process parameters in suspension liquid media containing fibers or tiny solid particles. It is particularly suitable for automatic regulation and shut-off of fluid media with suspended particles such as pulp, white water, black liquor, and white liquor in the production processes of pulping and papermaking, as well as for thick and turbid slurry media.
● Excellent adjustment performance, precise flow characteristics
● Applicable to harsh media containing solid substances
● The central sealing device is an adjustable pressure block, which is convenient for maintenance.
● The valve body is compact and cost-effective.
● The outer sealing surface and the inner cavity can be treated with tungsten carbide.
● The electric/ pneumatic actuators can be configured arbitrarily
● Pipe diameter range: DN25 to DN600 (1" to 24")
● Pressure range: 1.6 - 6.4 MPa
● Temperature range: -40℃ to +425℃ (optional)
● Material options: carbon steel, stainless steel, duplex steel
● Sealing materials: PTFE, PPL, metal + STL
● Connection method: Flange, Socket type
● Driving methods: pneumatic actuator, electric actuator, worm gear, handle
● Control mode: Switching ON/OFF type, adjustable type with 4-20mA or 1-5V output.
● Other configurations: Contact the BAHE business personnel or the technical department to obtain more technical specifications or option information about this product.
