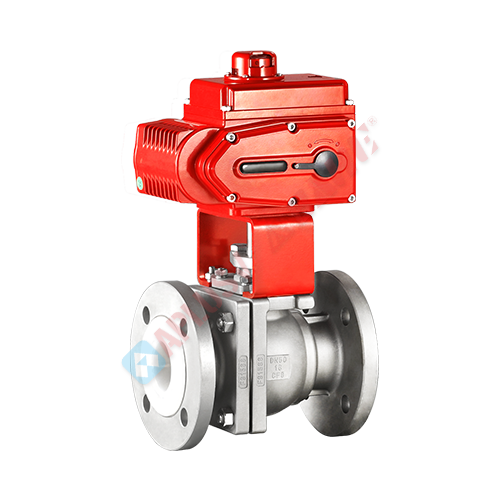

The inner cavity of our four-flush ball valves and the ball body are both manufactured using high-pressure injection molding technology. They are lined with corrosion-resistant and aging-resistant fluoroplastics or PTFE, thus possessing reliable corrosion resistance and sealing performance. They can be widely applied in industrial control systems of industries such as chemical engineering, petroleum, metallurgy, medicine, and power. They can also be effectively used for strong corrosive media like acids and alkalis.
● Adopting soft-sealing valve seats, the sealing performance is excellent.
● Low resistance, high flow capacity
● The connection end has an unexposed structure design
● Applicable to chemical media
● Simple structure, easy to operate and maintain
● Pipe diameter range: DN15 to DN250 (1/2" to 10")
● Pressure range: 1.6, 2.5 MPa
● Temperature range: -29℃ to +150℃ (maximum 180℃)
● Material options: Carbon steel, Stainless steel
● Sealing materials: F46, F4, PFA, PTFE
● Connection method: Flange
● Driving methods: pneumatic actuator, electric actuator, worm gear, handle
● Control mode: Switching ON/OFF type, adjustable type with 4-20mA or 1-5V output.
● Optional accessories: Electromagnetic valve, limit switch, pressure reducing valve, positioner, handwheel mechanism, hold-down valve, quick relief valve. (Indicate whether it is explosion-proof or not).
● Other configurations: Contact the BAHE business personnel or the technical department to obtain more technical specifications or option information about this product.
