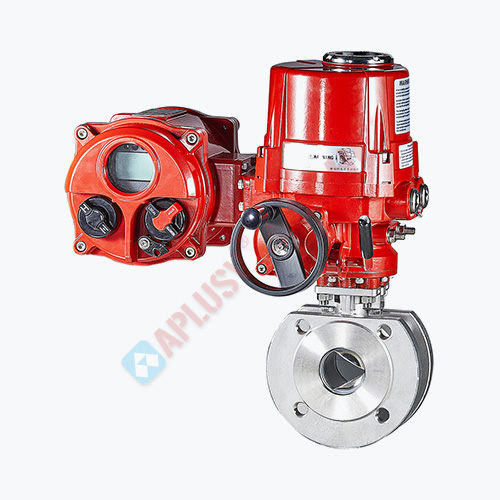

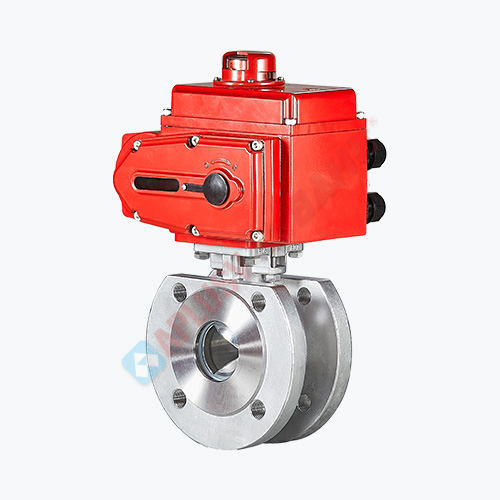

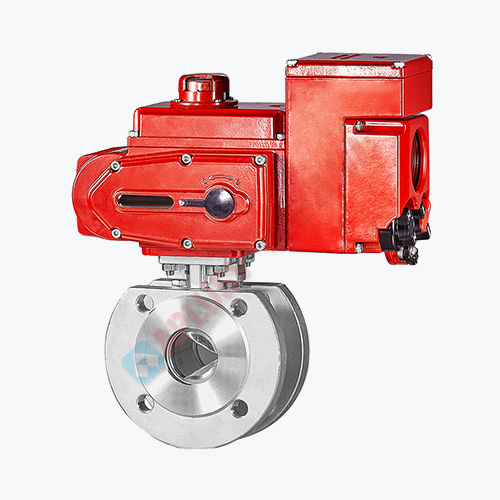

The valve body of our high-performance wafer ball valve is shorter than that of the common flanged ball valve, making it suitable for scenarios where there are a large number of valves in the same pipeline in factories. The ball has a 90-degree rotational movement, with a circular hole through the axis. When the ball rotates 90 degrees, it should present a spherical surface at both the inlet and outlet, thereby blocking the flow. Conversely, it presents a circular hole, allowing the medium to pass through. The inner cavity of the full-diameter ball provides a flow path with very little resistance and direct flow. The 90-degree rotation of the actuator enables the ball valve to close tightly. The direct connection between the actuator and the valve body reduces the probability of failure.
● Fireproof and anti-static design
● Valve stem explosion prevention device
● Pressure balance holes are designed on the valve ball.
● Compact in size and affordable in price
● The ball can be made in two shapes: O-shaped and V-shaped.
● Easy to install and maintain
● Double-layer valve stem packing and pressure relief disc spring device
● Pipe diameter range: DN15 to DN250 (1/2" to 10")
● Pressure range: PN1.6 - 6.4 MPa (150 - 300 LB)
● Temperature range: -40℃ to +425℃ (customizable for high temperature)
● Material options: carbon steel, stainless steel, chromium-molybdenum steel, alloy steel.
● Sealing materials: PTFE, PPL, PEEK, metal
● Connection method: Socket flange type (GB, ANSI, JIS, DIN)
● Driving method: Pneumatic actuator, Electric actuator
● Control mode: Switching ON/OFF type, adjustable type with 4-20mA or 1-5V output.
● Other configurations: Contact the BAHE business personnel or the technical department to obtain more technical specifications or option information about this product.
