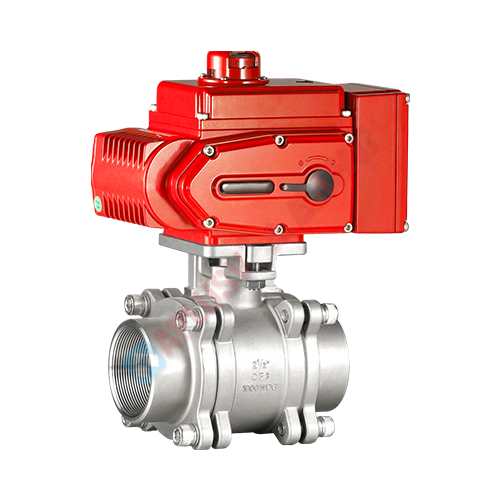

Our high-performance three-piece ball valves are all applicable to various pipelines with a pressure rating of PN1.0 to 6.4 MPa, and a working temperature range of -29 to 180℃ (with reinforced polytetrafluoroethylene sealing ring) or -29 to 250℃ (with isotactic polyphenylene sealing ring). They are mainly used for two-position shut-off and regulation purposes. They are used to cut off or connect the medium in the pipeline. They can be classified as: internal thread ball valve, external thread ball valve, three-piece ball valve, two-piece ball valve, and three-piece ball valve. They are respectively applicable to various media such as water, steam, oil products, nitric acid, acetic acid, etc.
● Fireproof and anti-static design
● Low resistance and high flow capacity
● The ball valve is equipped with a pressure balancing structure.
● ISO 5211 Connection Platform
● Valve stem explosion-proof structure
● Double-layer valve stem packing and compression disc-type spring clip device
● The electric/ pneumatic actuators can be configured arbitrarily.
● Pipe diameter range: DN8 to DN100 (1/4" to 4")
● Pressure range: 1.6 - 10.0 MPa
● Temperature range: -29℃ to +250℃
● Material options: Carbon steel, Stainless steel
● Connection methods: Threaded, Butt welding, Socket welding, Flange
● Applicable media: Water, oil products, gases and other types of media
● Driving methods: pneumatic actuator, electric actuator, worm gear, handle
● Control mode: Switching ON/OFF type, adjustable type with 4-20mA or 1-5V output.
● Other configurations: Contact the BAHE business personnel or the technical department to obtain more technical specifications or option information about this product.
