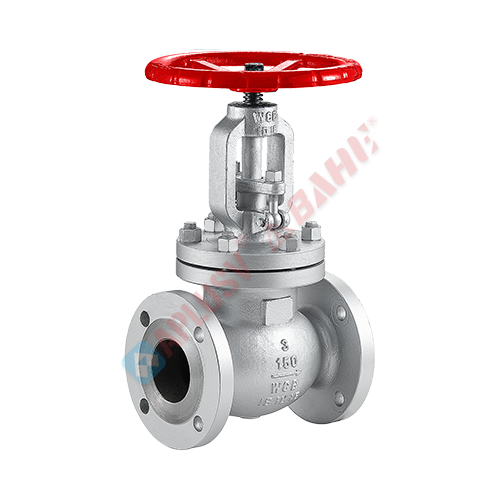

Our globe valve body and valve cover are designed with strict calculations to have good strength, stiffness, and flow capacity. A sealing seat is designed on the valve cover, which makes the packing seal more reliable and convenient for packing replacement when fully open. Fillers and gaskets are also reasonably selected according to actual working conditions or user requirements, and can be applied to various pressure, temperature, and medium working conditions, with reliable sealing and excellent performance. Medium to large diameter rolling bearings are installed for easy opening and closing.
● The valve body has a barrel-shaped or streamlined appearance, which is aesthetically pleasing. The flow shape is a straight-through type. The fluid resistance is low.
● The sealing surfaces of the closing element (gate) and the valve seat adopt conical sealing, resulting in low closing force, excellent resistance to erosion, and reliable sealing.
● The valve seat can be a replaceable type. It can be freely combined with the sealing surface material to achieve the required working conditions and extend the service life.
● The large-diameter, high-pressure stop valve adopts the lifting rod for the valve stem transmission method according to the requirements of the closing force. It is also equipped with a rolling bearing type handwheel that uses the impact method to reduce the closing force.
● The materials of the main body, inner components, fillers, and fasteners can be reasonably combined according to the user's requirements or actual working conditions.
● Transmission: Manual, Worm Gear, Bevel Gear, Pneumatic/Electric (with manual option)
● Connection: Flange
● Structure: Direct connection type, DC type
● Sealing: Soft seal, hard seal, rubber lining, fluorine resin lining, etc.
● Pressure: 0.6 Mpa ≤ 64.0 Mpa
● Diameter: DN15 ≤ DN80
● Temperature: 0℃ ≤ 550℃
● Valve body material: Stainless steel, cast steel, carbon steel, cast iron, etc.
● Applicable media: water, oil products, steam, etc.
