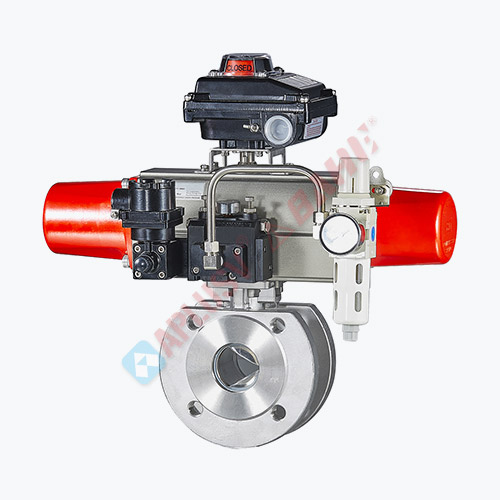

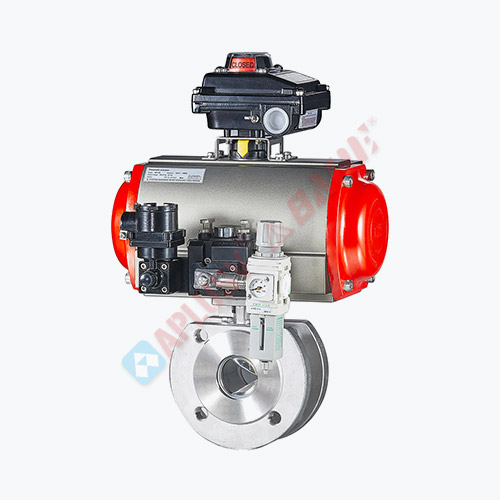

The valve body of our high-performance wafer ball valve is shorter than that of the common flanged ball valve, making it suitable for scenarios where there are a large number of valves in the same pipeline in factories. The ball has a 90-degree rotational movement, with a circular hole through the axis. When the ball rotates 90 degrees, it should present a spherical surface at both the inlet and outlet, thereby blocking the flow. Conversely, it presents a circular hole, allowing the medium to pass through. The inner cavity of the full-diameter ball provides a flow path with very little resistance and direct flow. The actuator rotating 90 degrees can make the ball valve close tightly. The direct connection between the actuator and the valve body reduces the probability of failure.
● Fireproof and anti-static design
● Valve stem explosion prevention device
● Pressure balance holes are designed on the valve ball.
● Compact in size and affordable in price
● The ball can be made in two shapes: O-shaped and V-shaped.
● Easy to install and maintain
● Double-layer valve stem packing and compression disc-type spring clip device
● Pipe diameter range: DN15 to DN250 (1/2" to 10")
● Pressure range: PN1.6 - 6.4 MPa (150 - 300 LB)
● Temperature range: -40℃ to +425℃ (customizable for high temperature)
● Material options: carbon steel, stainless steel, chromium-molybdenum steel, alloy steel.
● Sealing materials: PTFE, PPL, PEEK, metal
● Connection method: Socket flange type (GB, ANSI, JIS, DIN)
● Driving method: Pneumatic actuator, Electric actuator
● Control mode: Switching ON/OFF type, adjustable type with 4-20mA or 1-5V output.
● Other configurations: Contact the BAHE business personnel or the technical department to obtain more technical specifications or option information about this product.
