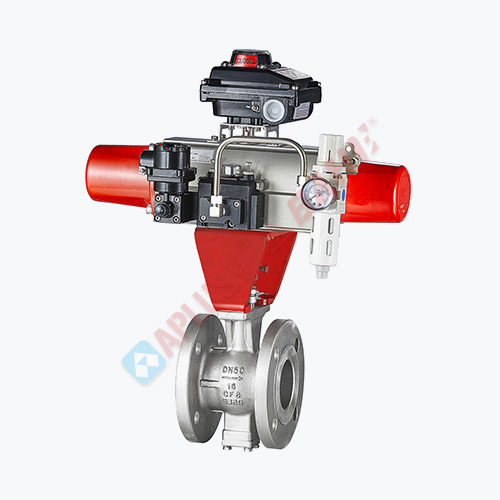

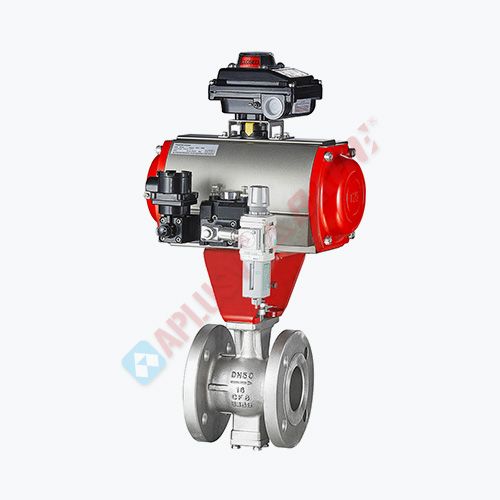

Our eccentric half-ball valve is a type of angle-travel regulating valve that controls the flow of fluid by rotating a partial ball valve plate around an eccentric axis. The rotation center of the valve core is not concentric with the rotation axis, which can reduce wear and extend the service life. A guide wing is set at the rear of the valve core, which is conducive to the stable flow of the fluid and has good stability. In addition, it has the features of large flow rate and wide adjustable range. The eccentric half-ball valve is widely used in industries such as petroleum, chemical engineering, power, metallurgy, steel, papermaking, medicine, food, textile, and light industry.
● Solves the problems of easy scaling and easy clogging
● Fireproof type sealing structure
● Spherical automatic compensation, long service life
● Excellent sealing and wear resistance performance
● Excellent heat resistance performance
● High safety factor and excellent sealing performance
● The electric/ pneumatic actuators can be configured arbitrarily
● Pipe diameter range: DN32 to DN1400 (1-1/2" to 56")
● Pressure range: 0.6 - 6.4 MPa (150 - 300 LB)
● Temperature range: -40℃ to +650℃ (customizable for high temperature)
● Material options: carbon steel, stainless steel, chromium-molybdenum steel, alloy steel.
● Sealing material: 304 + STL (customizable soft seal)
● Connection method: Flange type (GB, ANSI, JIS, DIN)
● Driving method: Pneumatic actuator, Electric actuator, Worm gear and worm wheel
● Control mode: Switch type, Adjustable type
● Other configurations: Contact the BAHE business personnel or the technical department to obtain more technical specifications or option information about this product.
