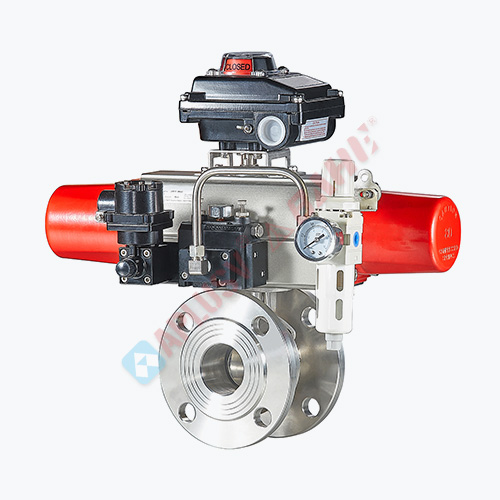

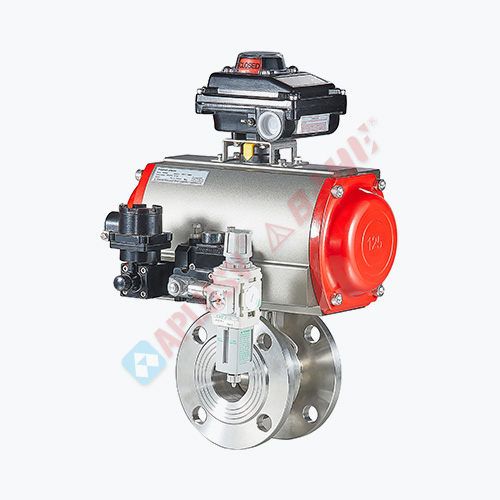

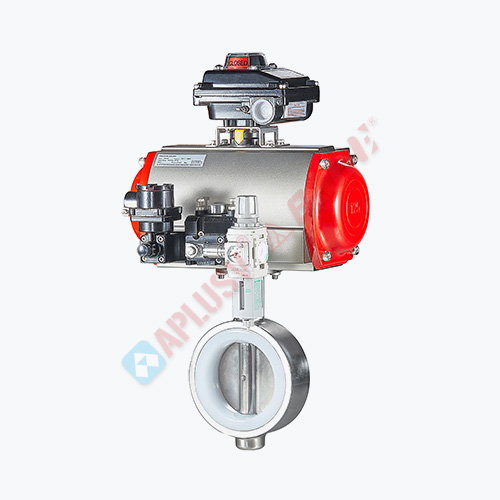

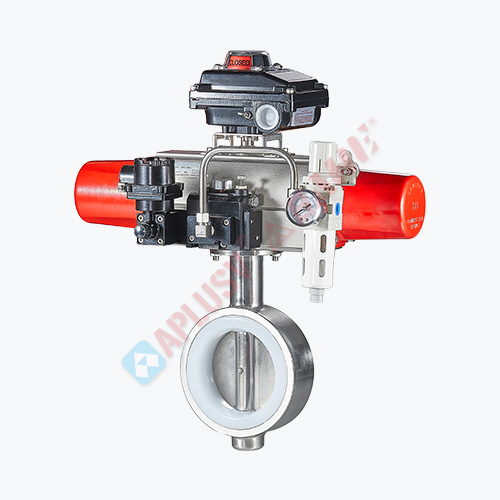

Our sanitary butterfly valve is precisely machined by imported CNC lathes and polished with standard electronic polishing. The smooth surface ensures no accumulation of media in the area, and it will not cause potential contamination. It fully meets the special requirements for various media in the food and biopharmaceutical fields. Its smooth, seamless, and automatic emptying process is also very suitable for the on-site cleaning of steam pipelines. During the manufacturing process, strict quality control in accordance with FDA requirements is carried out. The quick disassembly and assembly of the valve make it easy and quick to open and repair, reducing the downtime of the process. Sanitary butterfly valves are widely used in scenarios such as food, pharmaceuticals, cosmetics, clean steam, wine, beverages, and biochemical industrial process control. They have the advantages of compact structure and convenient disassembly.
● Simple structure, small size, light weight, and small installation dimensions
● Compact structure, easy to assemble and disassemble
● The driving torque is small, the operation is simple, and the opening and closing are fast and efficient.
● The sealing material is resistant to aging and corrosion, and has long service life
● The valve body and valve plate are made of stainless steel
● The valve seat material is non-toxic and hygienic
● The inner wall of the flow channel adopts 0,.05um electronic polishing
● Sealing material is hygienic and non-toxic
● The internal channels have no dead corners and are easy to clean.
● Design standards: GB/T12238, API 6D, API 608
● Structural length: GB/T12221, ASME B16.10
● Flange connection: HG, GB, JB, ASME B16.5
● Pressure and Temperature: GB/T9131, ASME B16.34
● Inspection and Testing: GB/T13927, API 598
● Quality Certification: ISO 9001, API 6D
