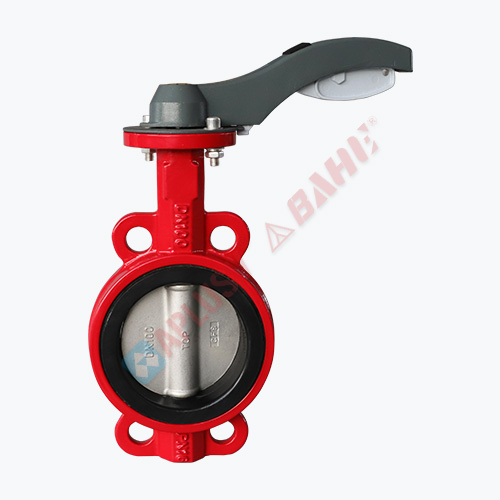

Our soft-sealing butterfly valve is composed of an electric actuator or an air actuator, a rubber-sealed butterfly valve, and carbon steel or stainless steel valve plates and valve stems. It is suitable for applications with a temperature of ≤ 120℃ in industries such as food, medicine, chemical engineering, petroleum, power, textile, papermaking, etc., for regulating flow and blocking media in water supply and gas pipelines.
● Novel design, reasonable, unique structure, light weight, fast opening and closing.
● The operating torque is small, making the operation convenient and effortless, and highly agile.
● Can be installed at any position, easy maintenance.
● The seal can be replaced, the sealing performance is reliable to achieve bidirectional sealing zero leakage.
● The sealing material has the characteristics of aging resistance, corrosion resistance and long service life.
● Pipe diameter range: DN50 to DN700 (2" to 28")
● Pressure range: 0.6 - 1.6 MPa (150LB)
● Temperature range: -40℃ to +120℃ (customizable for high temperature)
● Material options: carbon steel, stainless steel, chromium-molybdenum steel, alloy steel.
● Sealing material: EPDM (customizable soft seal)
● Connection method: Socket type, flange type (GB, ANSI, JIS, DIN)

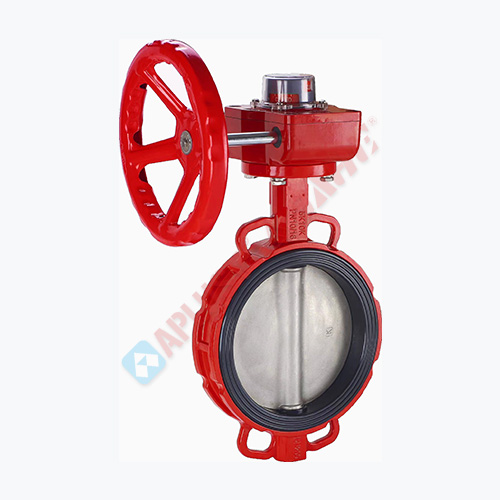

● Driving method: Pneumatic actuator, Electric actuator, Worm gear and worm wheel
● Control mode: Switch type, Adjustable type
● Other configurations: Contact the BAHE business personnel or the technical department to obtain more technical specifications or option information about this product.
